Quick Details

  • Condition: New
  • CNC or Not: Normal
  • Power Source: Pneumatic
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: JULY
  • Model Number: JLYDZ-15T
  • Voltage: 220V
  • Power(W): AC220V 50HZ
  • Weight: 165KG
  • Dimension(L*W*H): 665*480*1050 mm
  • Certification: CE
  • Warranty: one year
  • After-sales Service Provided: Overseas service center available
  • Pressure capacity: 15 tons
  • Cylinder: Diameter 125*100mm
  • Diameter: Diameter 125-L25-Q120
  • Driving Pressure: 0.4-0.7MPA
  • Output Pressure: 12265KGF-21400KGF
  • Start Button: Two Hand Safety Push Buttons
  • Safety Sensor: Customer Optional
  • Strcture Type: Four Columns
  • Processing material: Metal Sheet, Carbon Steel, Stainless Stee
  • Custom-tailor: Accept

Packaging & Delivery

Packaging Details Foam inside and plywood box outside.
Delivery Time Depend on factory production schedule,normally within 15 days.

JULY ® was founded in 1985 with more than 31 years of R&D and OEM experience.



Drawing


Specification

Pressure capacity 3T 5T 10T 15T
Working height 260 260 260 260
Cylinder size  ø63mm   ø80mm   ø100mm   ø125mm
Power AC220V,50Hz AC220V,50Hz AC220V,50Hz AC220V,50Hz
Weight 150 155 165 165
Driving pressure Theoretical output
0.4MPa 3100Kgf 5020Kgf 8340Kgf 12265Kgf
0.5MPa 3890Kgf 6280Kgf 10425Kgf 15330Kgf
0.6MPa 4670Kgf 7530Kgf 12510Kgf 18400Kgf
0.7MPa 5450Kgf 8790Kgf 14500Kgf 21400Kgf




Characteristics

1.It is pneumatically driven,export thrust,simple to operate.

2.No hydraulic system noise, can save electricity consumption and thus reduce production costs.

3.Adjustable cylinder stroke and customized for special request.

4.Easy to adjust the output, the required pressure can be reached by simply regulating the air pressure.

5.Safety and humanity design that ensure operation comfort and long lifespan .

6.Allows adding heating modules and temperature controller, as well as forcing transducer additionally.

7.Available working platform: 500*560*610mm (L*W*H).




Advantages

1. Faster drive speed and more stable pressure transmission than hydraulic press machine.

2. Simple device, easy adjustment, convenient maintenance.

3. High output, up to the oil pressure.

4. Cheaper price than hydraulic press machine.

5. Simple maintenance, easy to clean the working environment.

6. Convenient to obtain the power source (air).

7. Convenient energy conversion, oil tight.

8. Easy and light equipment, easy to handle.

9. Low action noise.

10. Saving more energy than hydraulic press machine.

11. No trouble of temperature rising of oil pressure system.




Application

stamping, bending, cutting, punching, embossing, riveting, plastic sheet metal, tight assembly, extrusion molding, profile welding, material testing,etc.

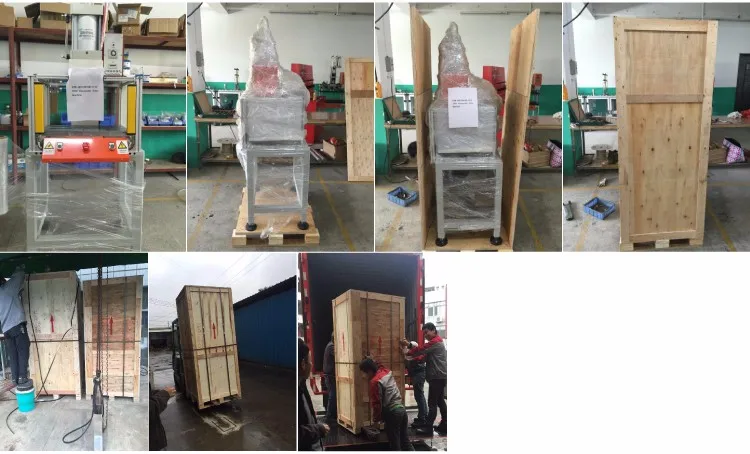

Packing


All the machines are packed by standard wooden cases with noticeable shipping marks. We can also supply all kinds of packing, according to customers' requirements:  Shipping Marks, Bubble bags, etc.

Shipping

By sea By air By express
Cheapest but longest option 18~30 days by sea delivery, best for large quantity order.More expensive than sea delivery, But cheaper than express 5~7 days by air to airport.Door to door service,the fastest and most expensive one, 3~6 days by express.









Direct Factory

1.Our first factory founded in Taiwan in 1985 . 2.Two our own,factories in China.

3.ISO 9001:2008 Certificate.



R&D team
Efficient and professional R&D team of more than 20 people.



Quality is our culture
There is a set of complete system to recording all material, production and inspection, which helps us to quickly tracking and solve any problems .





Application
Our products and equipment apply to many fields.
Our products are widely recognized and trusted by users.



Certificate
We have been obtaining lots of patents.
We have also won the honorary title of national high -tech and innovative enterprise in China .







Our Advantages

1. Various style for each products and completely series pneumatic products for you to choose from.

2. Large stock for fast shipping.

3. High quality with competitive price

4. Sample order & small quantity order is ok

5. Customize according to your special demand.

6. Provide free products information.

7. Reliable quality assured and active after-sell service




Service Tips

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays.

If you have any other requirements or questions, welcome to  visit our website  , or just  contact us directly  . Tha nk you!





FAQ

  Q1. What is your term of payment?

A: Usually, we accept T/T, irrevocable L/C at sight. For regular orders, we prefer 30% in advance, 70% against the copy of B/L. For long term business relations, we have more advantage terms for payment.



Q2. What is your terms of delivery?

A: We accept FOB, CIF, DDU, DDP etc. You can choose the one which is the most convenient or cost-effective for you.



Q3: What is the lead time?

A: It usually takes 15 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was nonstandard, we have to consider extra 10-15 days.



Q4: Can you produce according to the drawings?

A: We can accept customers' customization, but we need to communicate with our engineers about the production.



Q5: Can you use the spare parts that customers specify the brand?

A:  We are very willing to accept the spare parts that customers specify the brand to product assembling, but we need to charge some assembling cost.



Q6: Can you supply the product mold or other related accessories?

A: We can on behalf of the procurement according to the customer's drawings and requirements. After the product mold and accessories are installed and debugged in the machine, it will be sent to you shipped with the machine.



Q7: Do you accept the factory inspection?

A: Yes, we are very happy to accept customers to visit. We are a manufacture with a very rich R & D and production experience for many years.



Q8: How to solve the quality of after-sales?

A: We have a professional after-sales service team to solve your problem at the first time. For product quality problems during the warranty period (non-human damage), we will be maintenance or replacement for you unconditionally. For man-made damage, we only be charged for the maintenance costs.



Q9:What is your shipping method?
A: We respect the client's choice, by sea, by air or by express.



Q10. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery. We have QC team comply with TQM, each step is in compliance to the standards.
